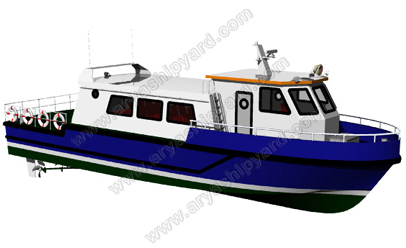

Characteristics |
|
| Hull |
: STEEL |
| Superstructure |
|
| Length o.a.
|
: 17 meter |
| Beam o.a.
|
: 5.00 m |
| Draft Max |
: 1.40 m * With Shaft drive system |
| Total tank capacity
|
: 4.000 lt adjustable |
| Power range (total)
|
: between 1600 hp to 2400 hp |
| Speed range
|
: 18 - 28 knots |
| RECOMENDED EQUIPMENTS |
| ENGINE |
: 3 X Cummins QSM 11 660hp@ 2300rpm |
| Gearbox |
: ZF 325 1A |
| Genarator Set |
: Cummins onan 17kw |
| Bow Thruster |
: 50hp |
| Deck Crane |
: 2T/M Hydraulic knuckle boom |
|
|
| OTHER PROPULSION AND GENERATOR OPTIONS : |
| Caterpillar, Volvo, Scania, Iveco, Doosan, Hyundai |
|

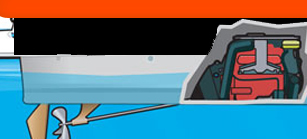

SHAFT DRIVE SYSTEM
